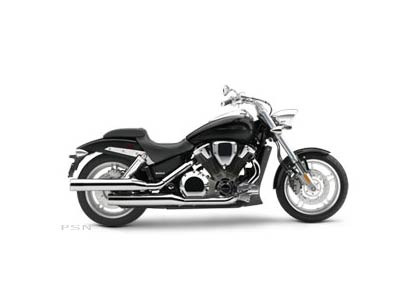

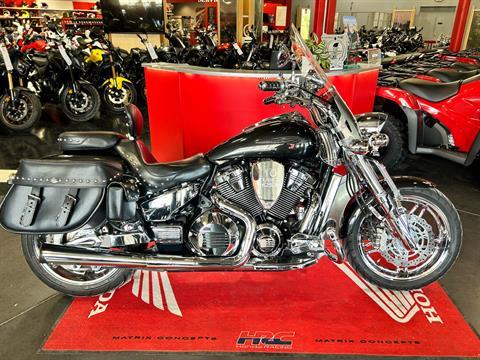

2007 Honda VTX™1800F

Additional Features:

• Distinctive, new, chrome hooded-headlight housing features a powerful 55/60-watt halogen bulb with a computer-designed multi-reflector for superb lighting in all conditions.

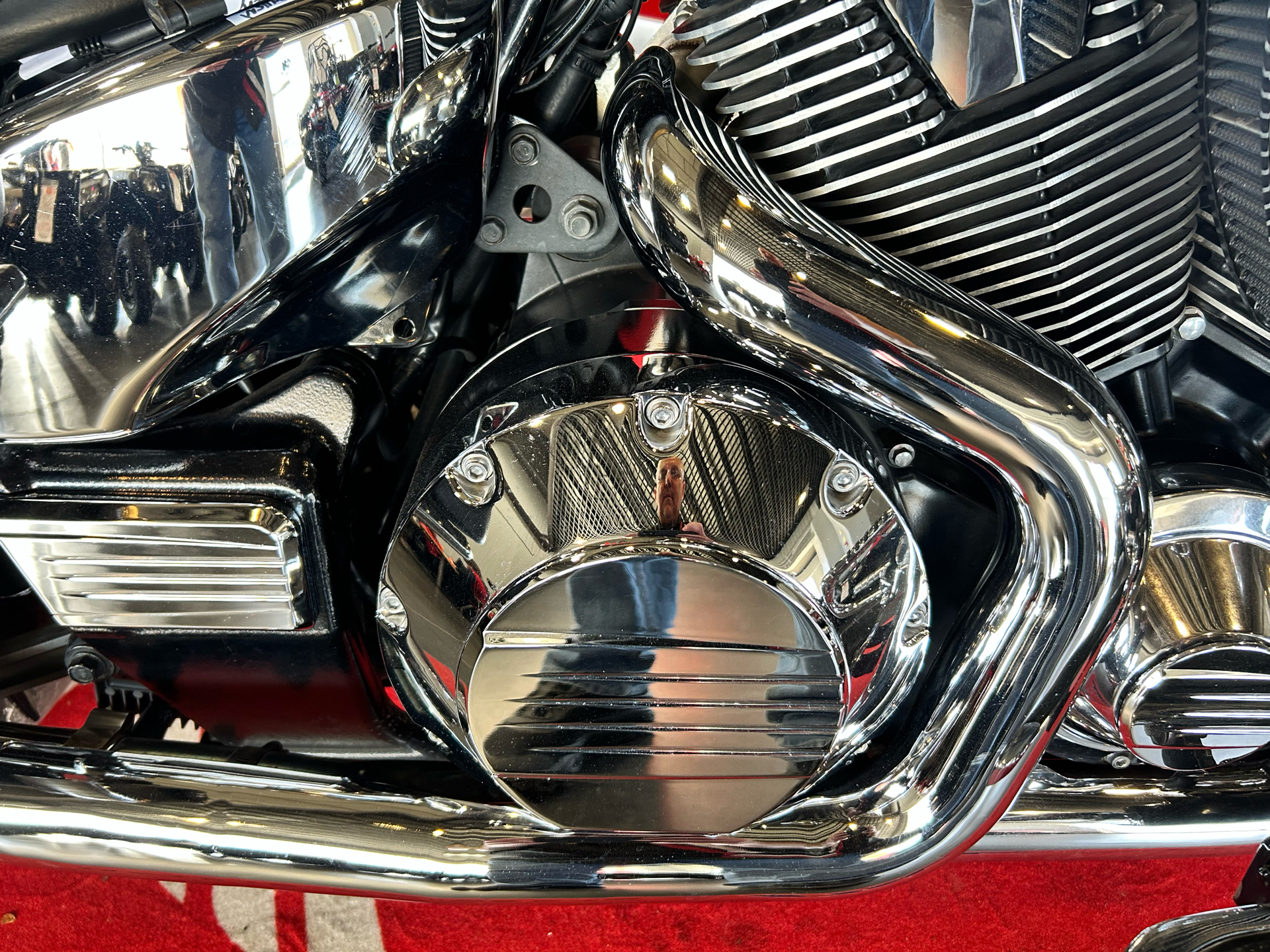

• Extensive chrome-finishing of engine parts includes cylinder-head covers, valve inspection covers, spark plug covers, airbox cover, left crankcase cover, clutch cover and left-rear engine cover.
• Comfortably padded, large-diameter handgrips.
• Reliable 300-watt alternator.
• Durable, maintenance-free battery.
• Handlebar switches and controls use internationally approved ISO graphic symbols.
• Convenient push-to-cancel turn signal switch.

Chassis/Suspension:

• Massive tubular steel frame contains the engine's power and gives the VTX a long, low, muscular stance.
• Large 45 mm inverted front fork provides 4.3 inches of plush yet responsive wheel travel.
• Dual chromed rear shocks have 3.9 inches of wheel travel and feature an advanced internal valve system for a comfortable ride.
• The VTX's braking system features two three-piston front calipers and a single two-piston rear caliper. Rider application of the front brake lever activates the two outer pistons of the front calipers. Application of the rear brake pedal activates the two pistons of the rear caliper and the center pistons of the front calipers.

Engine/Drivetrain:

• Engine is a 1,795 cc liquid-cooled 52-degree V-twin that hammers out immense power--106 bhp at 5,000 rpm and 120 ft.lbs. of torque at 3,500 rpm.
• V-twin engine features 4-inch cylinder bores and the largest connecting rods and cylinders Honda has ever made.
• Offset dual-pin crankshaft with two primary-shaft-mounted balance weights allows a high-performance engine design while eliminating harsh engine vibration. The result: muscular power across a broad rpm range for unequaled acceleration and roll-on performance.
• The 41.4-pound forged-steel crankshaft uses bolted weights, reducing crankcase width nearly 2 inches and reducing crankshaft weight 8.8 pounds compared to a conventional one-piece design.
• The engine mounting system uses carefully matched hangers and rubber mounts to eliminate unwanted vibration, while preserving the powerful character of the engine's V-twin design.
• Each three-valve cylinder head features two large 36 mm intake valves and a huge 45 mm exhaust valve to produce optimum flow for the air/fuel charge.
• Two iridium-tip spark plugs per cylinder for efficient combustion at all engine speeds.
• Simple-to-service screw-and-locknut valve-clearance adjusters.
• 4.5-liter airbox supplies a large volume of cool, clean air to the engine.
• Advanced high-pressure programmed fuel injection (PGM-FI) features 42 mm diameter throttle bodies delivering air to two specially designed Denso 50-psi high-pressure fuel injectors. Fuel is delivered through 12 nozzle holes in each injector, producing an atomized fuel mixture that is highly combustible for maximum efficiency and power.
• ECU provides individual digital 3-D fuel-injection and ignition maps for each cylinder, creating ideal fuel mixture and spark advance settings for superb rideability.
• A unique dry-sump oiling system utilizes a closed crankcase design and places the oil tank inside the gearbox case. The result is a freer-revving engine for improved power and a lower engine height.
• Radiator with cooling fan maintains consistent engine temperature for optimum performance and long engine life.
• Maintenance-free automatic cam-chain tensioners.
• Reliable electric-starter system.
• Primary drive gear uses a cam-type damper to minimize powertrain lash.
• Sturdy, maintenance-free eight-plate hydraulic clutch with clutch-center damper ensures smooth gear shifting.
• Five-speed transmission with carefully selected gear ratios for relaxed cruising and exciting roll-on performance.
• Shaft final-drive system provides smooth, low-maintenance operation.
• Driven-flange design at the final-drive gear eliminates final-drive noise and wear, and simplifies rear-wheel installation.

New for 2007:

• The VTX™1800F is available in these exciting colors: Metallic Black, Pearl Yellow, Red with Black Tribal.

Unique Features:

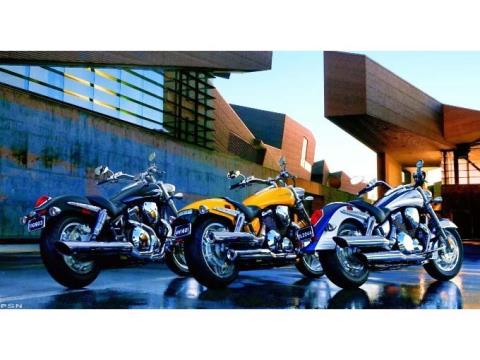

• The VTX1800F is available in three distinctive build variations: Spec 1, 2 and 3.
• Bold sport-custom performance-cruiser styling.
• Bobbed-style front steel fender with straight-cut rear steel fender complements the drag-racing look.

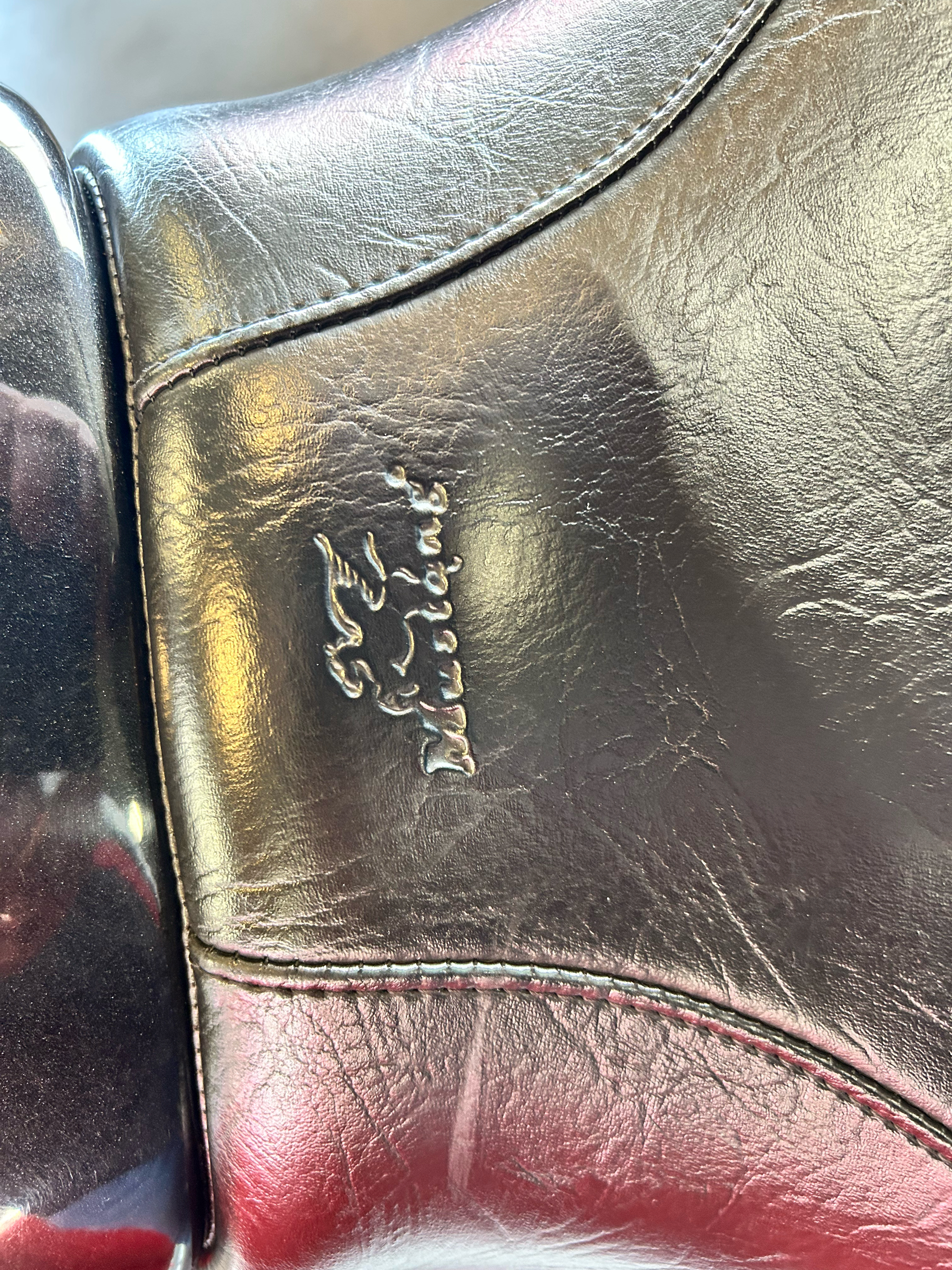

• Low 27.6-inch two-piece gunfighter-style seat features a removable passenger section for an enhanced custom look.
• Semi-swept, high-rise, aluminum handlebar mounts provide a comfortable, upright riding position.

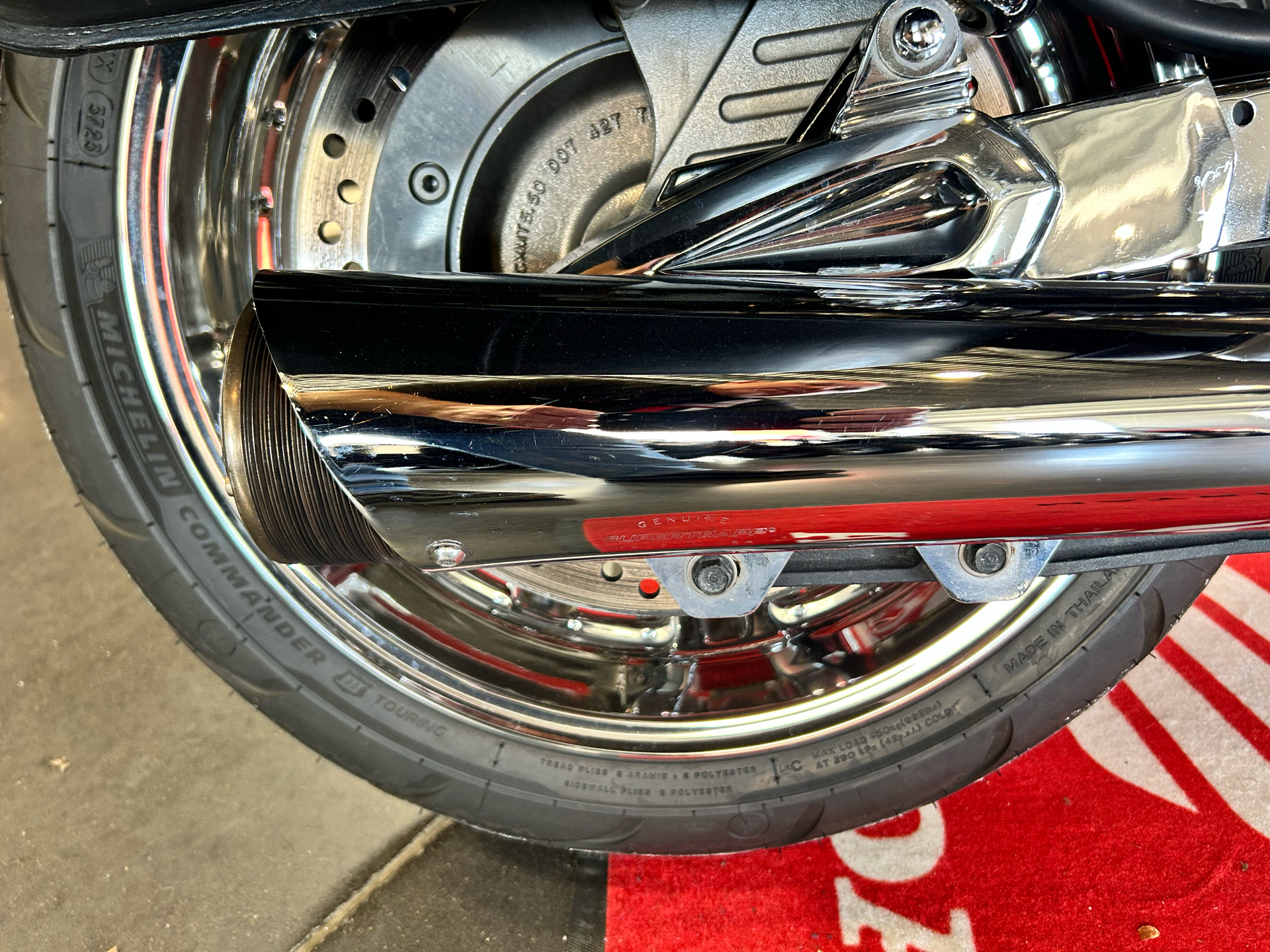

• Handsome chromed two-into-two staggered exhaust system features five-bolt muffler tips and a deep exhaust note.

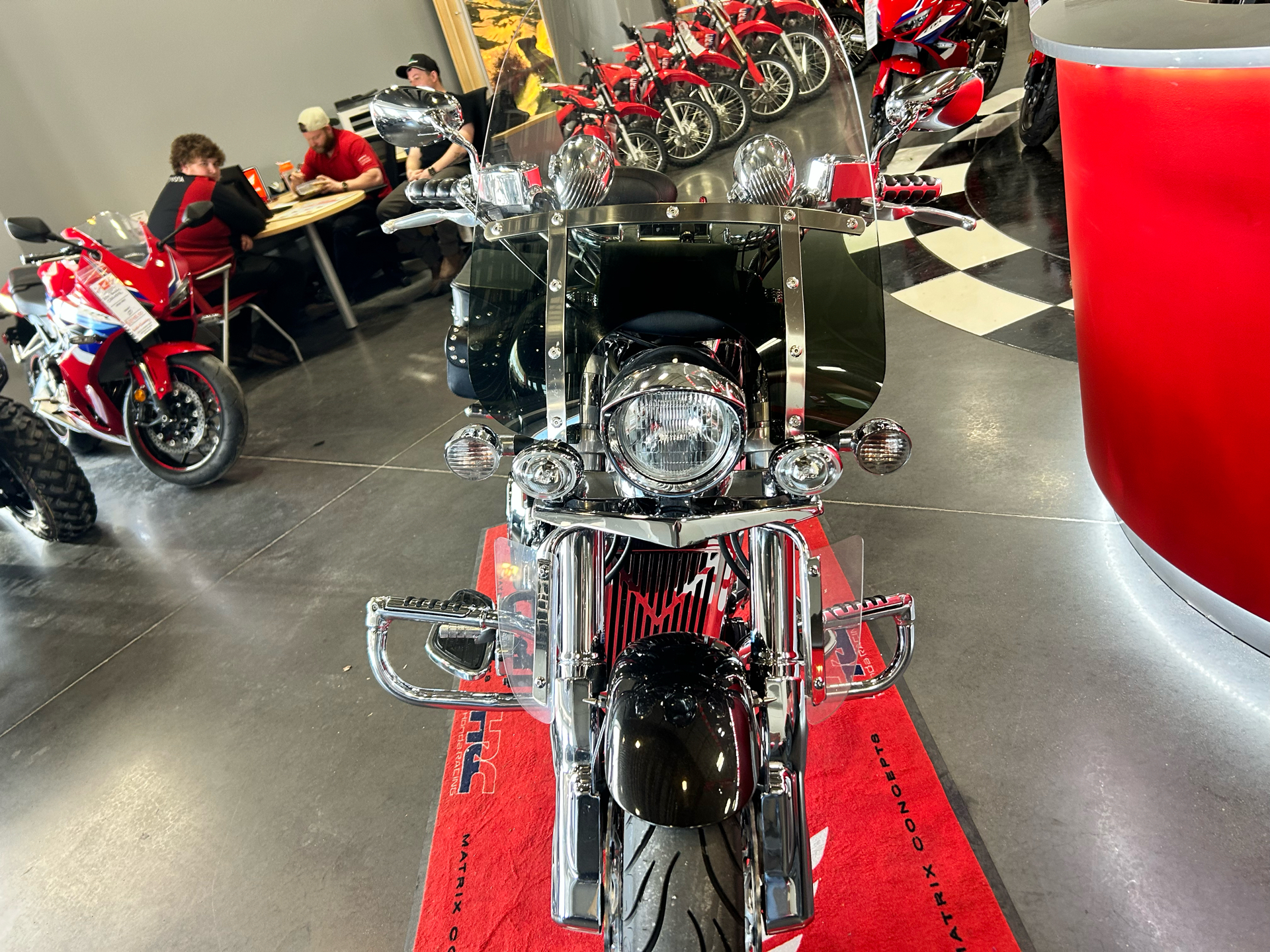

• Streamlined headlight features a smaller hooded lens for a unique minimalist look.

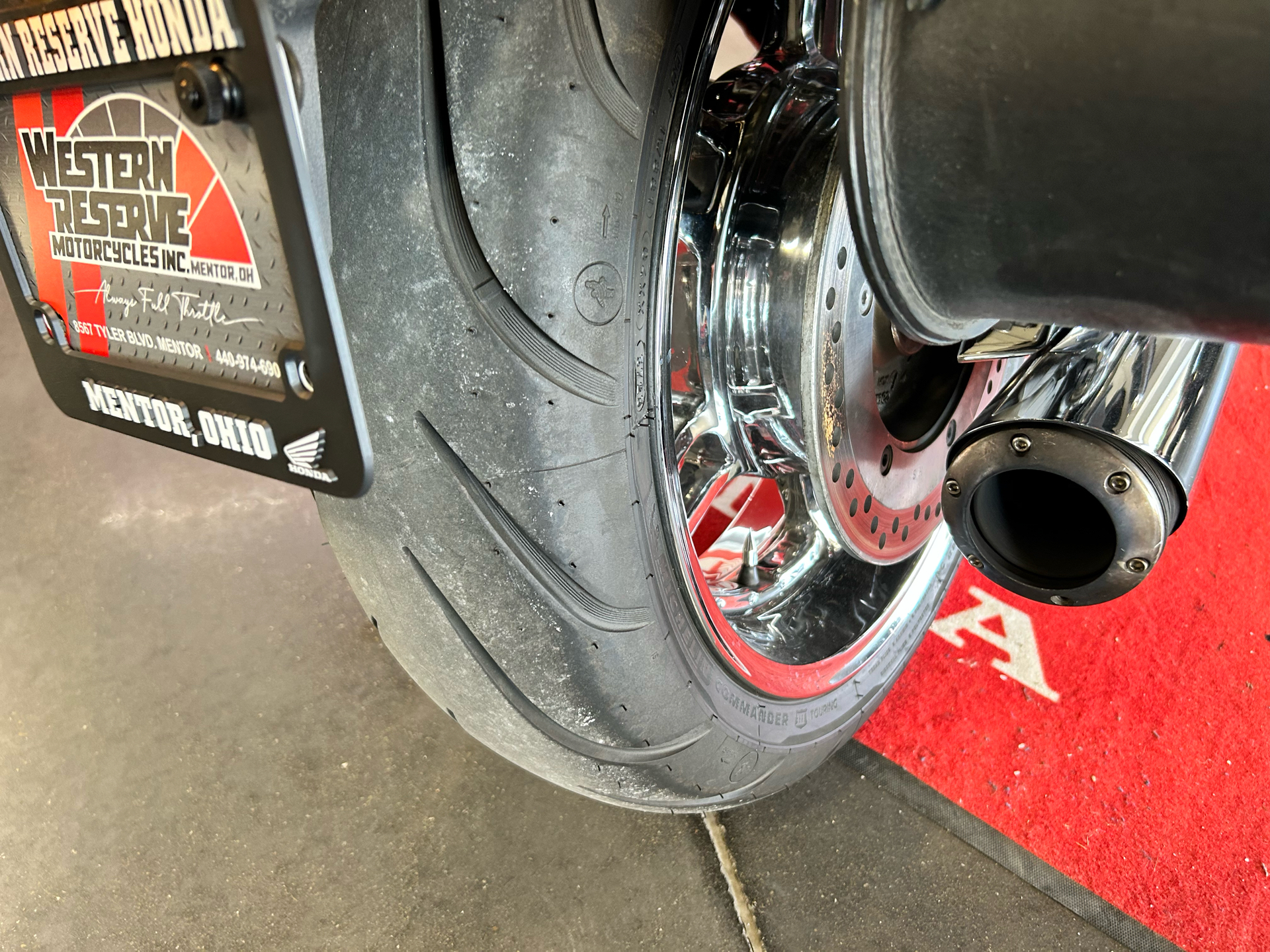

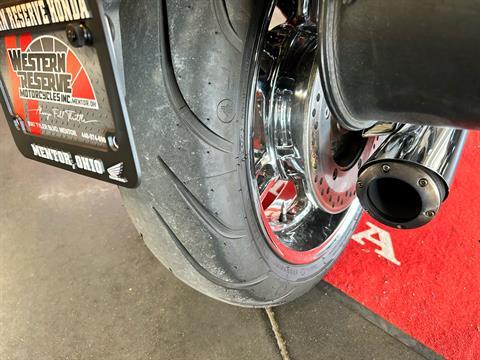

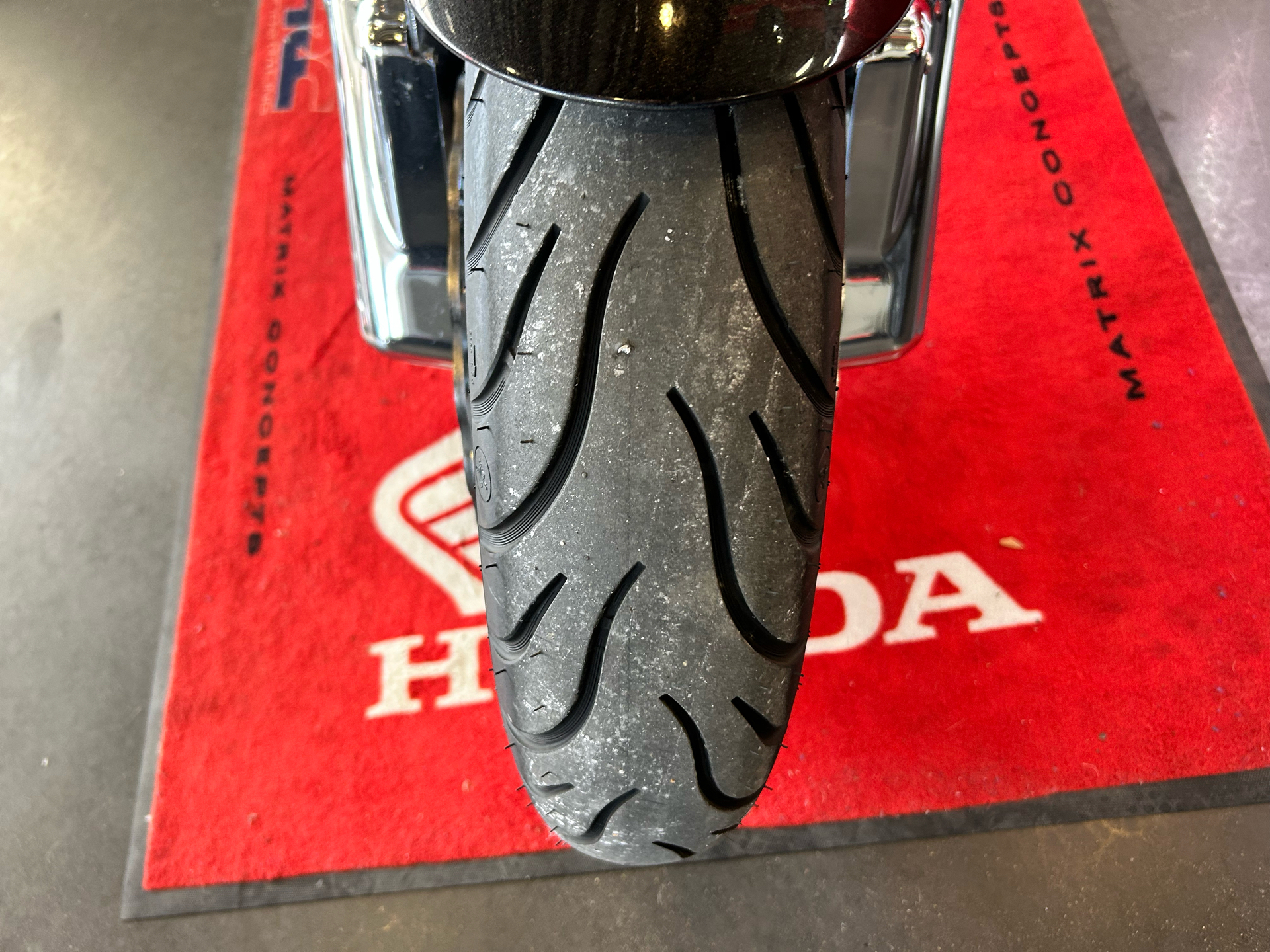

• Aggressive 10-spoke racing-type cast wheels feature a low-profile 130/70R-18 radial front tire with an aggressive 180/55R-18 radial rear tire to put the engine's awesome power to the ground and enhance the overall performance and custom look.

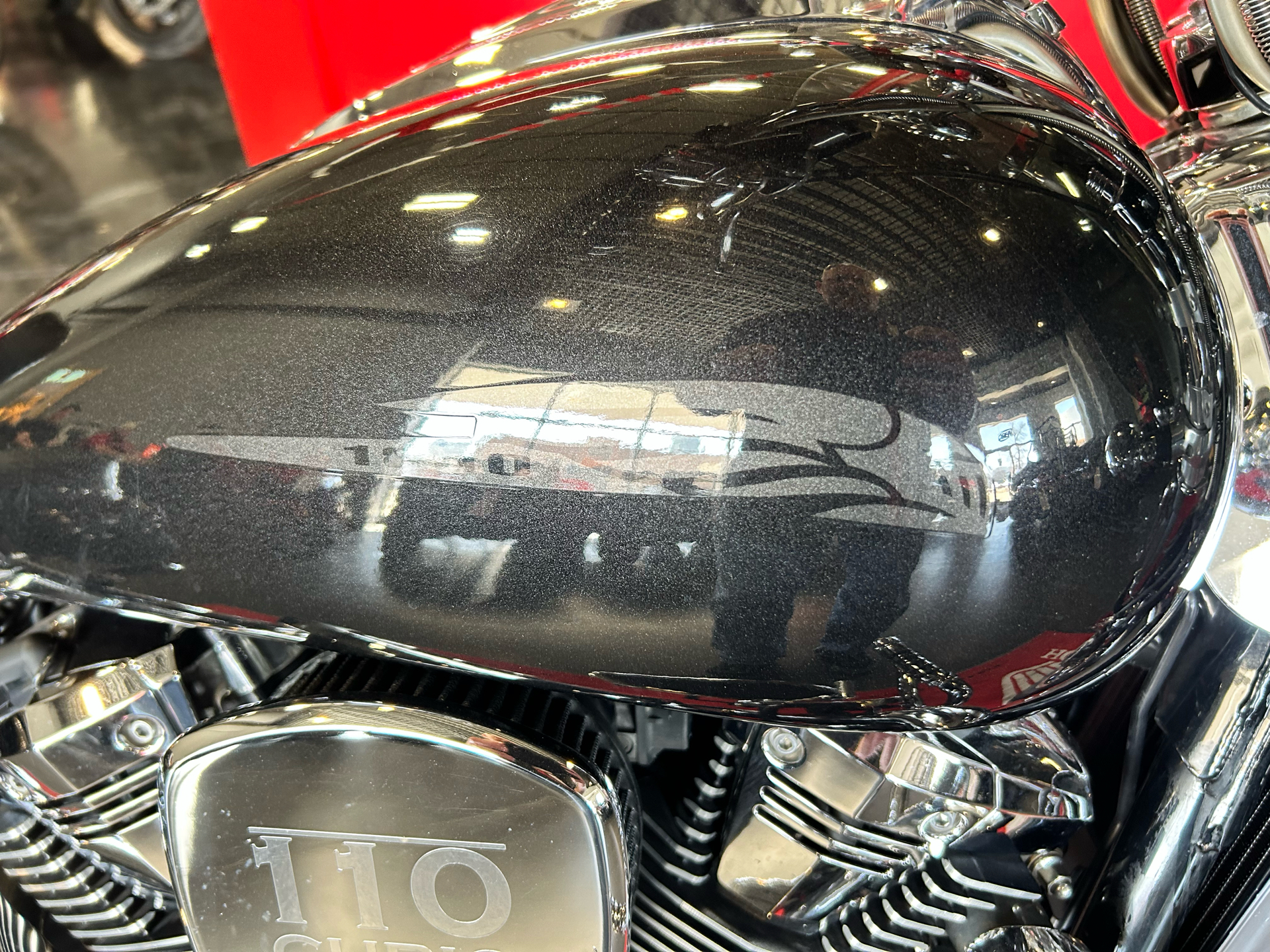

• Large, handsomely finished, flangeless 4.8-gallon gas tank features pinstripe-quality VTX decal badging.

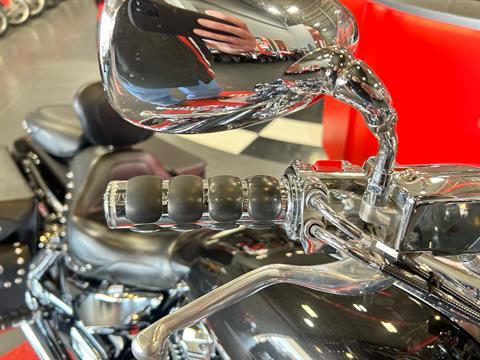

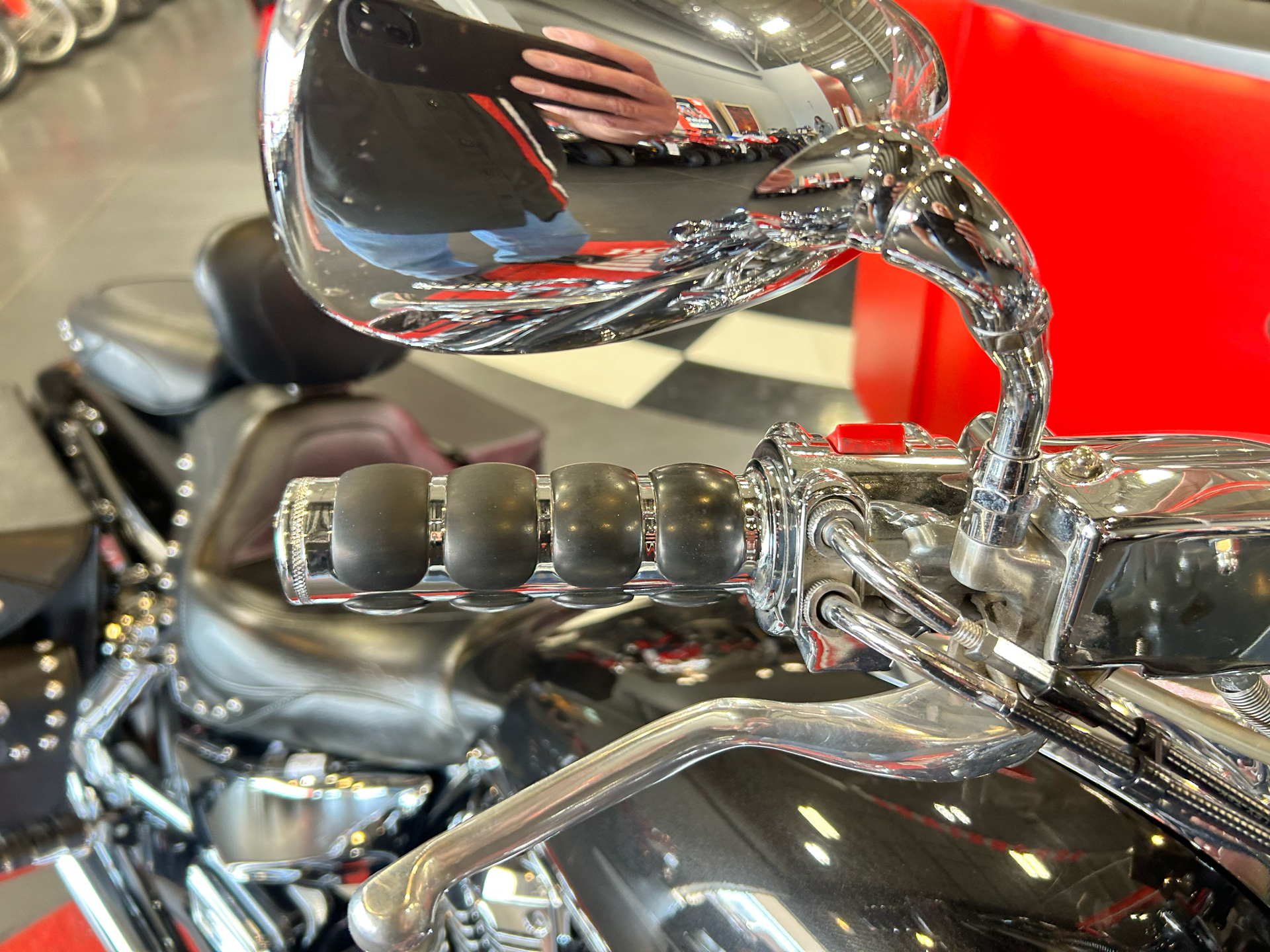

• Custom-design wedge-shape mirrors.
• Custom-style recessed LED tail- and brakelight.
• Billet-style rear fender rails feature a slotted surface treatment with hairline brushed finish for a unique custom look.
• Bullet-style turn signals feature chrome visors, clear lenses and amber flasher bulbs.

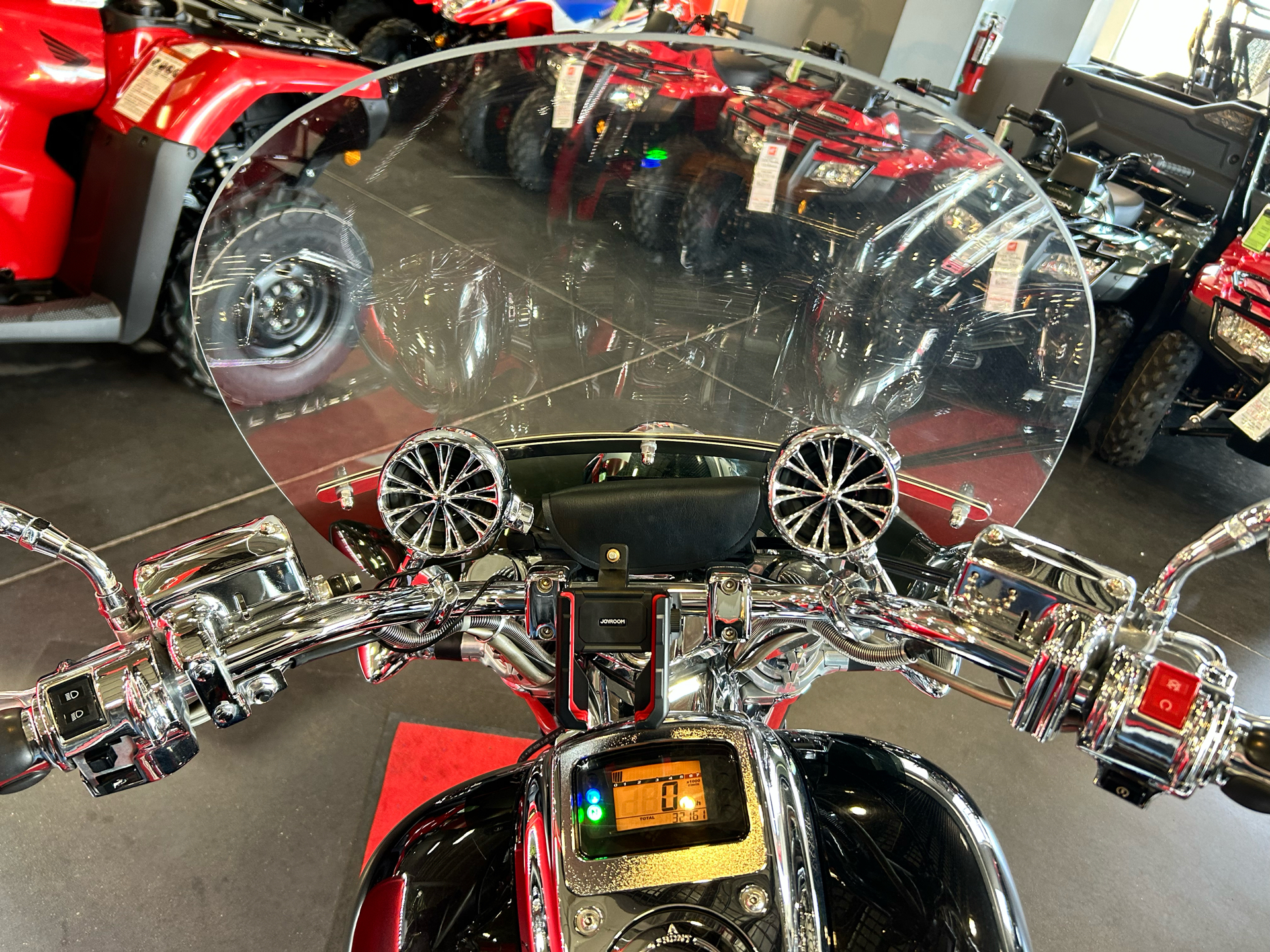

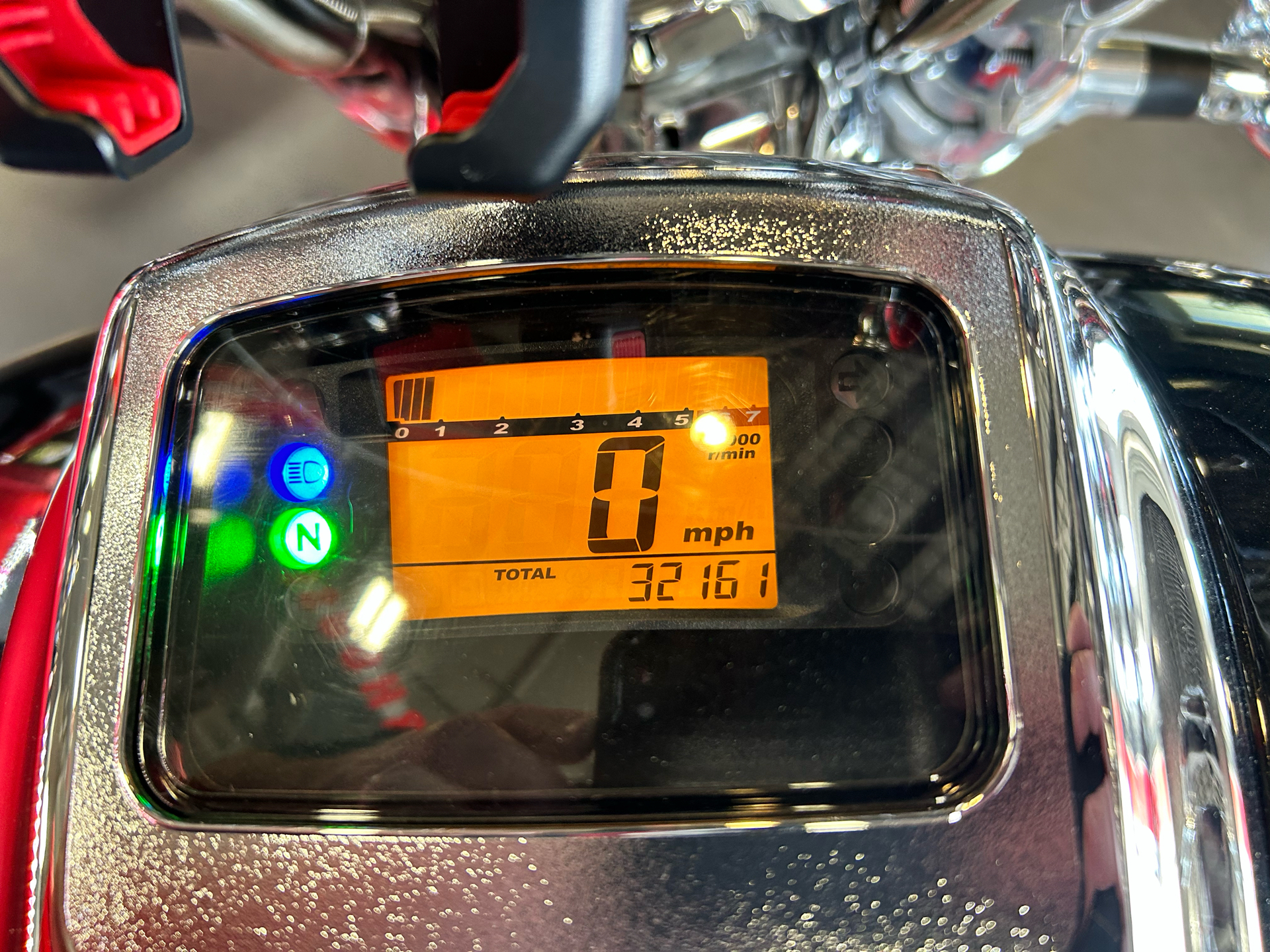

• Tank-mounted digital LCD instrumentation includes a speedometer, bar-graph tachometer, odometer, A/B tripmeters and a clock.
• Electronic control unit (ECU) closed-loop emissions system utilizes an air-injection system and three-way exhaust catalyzer to simultaneously reduce emissions of hydrocarbons carbon monoxide and oxides of nitrogen. California model exceeds CARB 2008 emissions standards.
